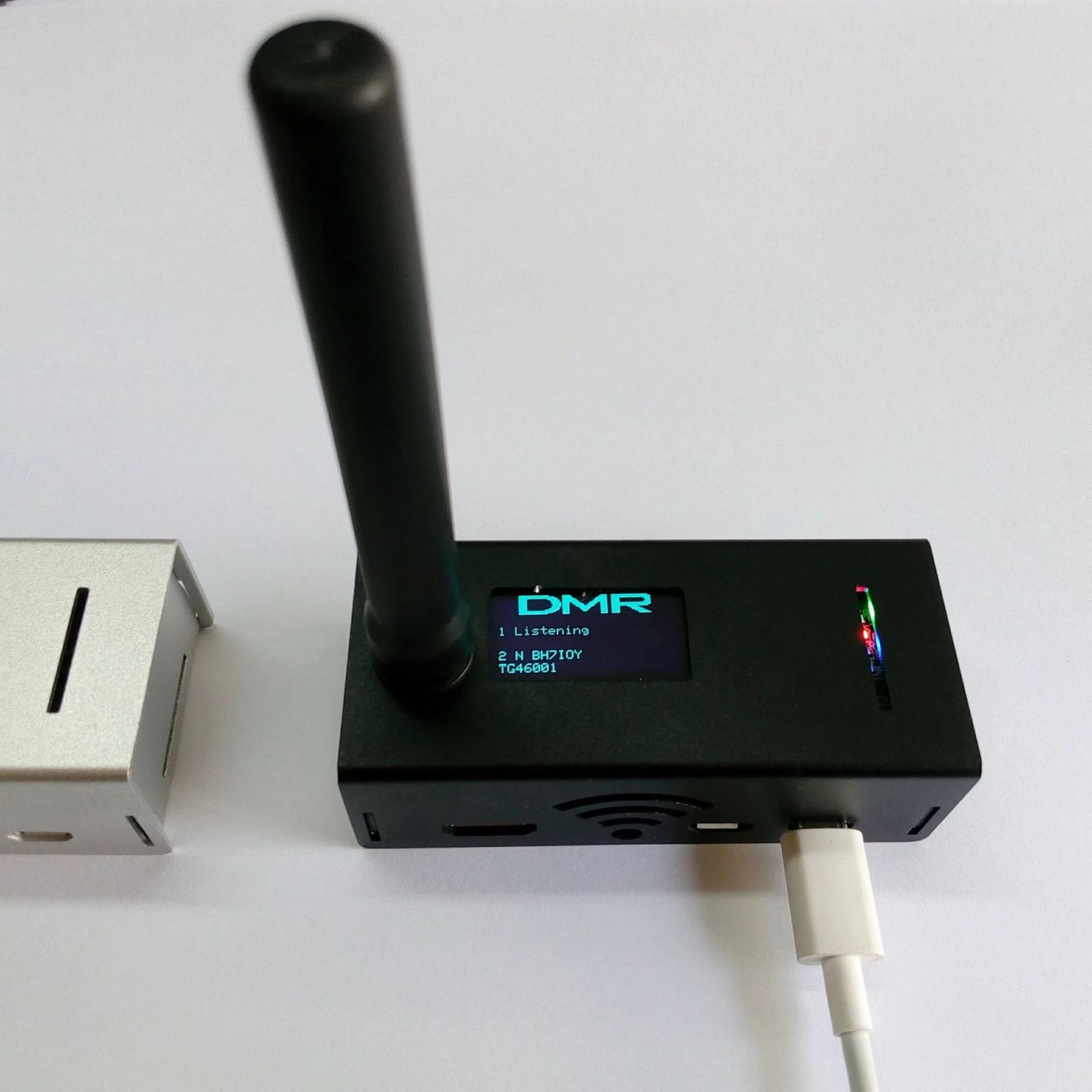

JumboSpot RTQ P25/DMR/YSF/NDXN HotSpot with pre configured SD card

JumboSpot / HOTSPOT RTQ P25/DMR/YSF/NDXN MMDVM HotSpot with pre configured  SD cart

High-performance US MMDVM Hotspot Support P25 DMR YSF+ aluminum Case Raspberry Pi Zero + OLED + Ante

Description:

Picture of First Admin Screen.

Features:

1. High performance 32-bit ARM processor
2. Fully tested
3. Supports DMR, P-25, D-Star and System Fusion
4. Onboard LEDs to show status (Tx, Rx, PTT, Mode)
5. Up to 10mW RF power.
6. Size and Weight：7x3x2.3Cm/50G
7. Color Black or Silver

JumboSPOT RTQ(READY TO QSO) Manual

Note: RXoffset :-475

Firmware update:

• https://www.youtube.com/watch?v=gwKgOiBcSxQ&feature=youtu.be
• http://jumbospot17.blogspot.com/2018/01/how-to-upgrade-fw.html
• https://www.youtube.com/watch?v=4vZZfe-hBfg&feature=youtu.be
• http://radioaficion.com/news/jumbo-spot-rtq-mini-mmdvm/
• http://radioaficion.com/news/jumbo-spot-mmdvm-review/
• https://www.youtube.com/watch?v=gwKgOiBcSxQ&feature=youtu.be

Brief for short, there are 2 points you need to confirm:

1. Your WIFI is configured SSID/PASSWORD rightly, MMDVM connected and get an IP address.
2. Do you select the OLED in WEB GUI，OLED to have a rare rate of broken, or wiring error? we do this basic OLED test at every package sending.（Pls note, it may take 1-2 minutes the display will light after configure, come with ZERO W(with wifi)+jumbospot(UHF+VHFnot main band)+TF8g(pi-star)+ANT433mhz)

Specifications:

• 802.11 b/g/n wireless LAN
• 1GHz, single-core CPU
• 512MB RAM
• Micro USB power
• installed JumboSPOT UHF(430-440)+VHF(144-146),(VHF is not the main band, performance reduction)RF extend board.
• 8G TF CARD Installed PI-STAR panel, Support DMR, YSF, P25 mode to QSO with RF To the internet
• OLED Display, Default installed pi-star to TF card, wifi TEST SSID is TZB,pass  is 13902982913, you can change your router s default SSID and pass it will, auto connect.

or you can:
visit http://www.pistar.uk/wifi_builder.php input your home ssid and psk ,then download the wpa_supplicant.conf inside with have your home ssid and psk,then save to TF card ,

ROOT root directory example F:\  then power on it ,

wait 2-3 minutes ,

it will auto connect your home s ssid,

you can check your wifi router to see the pi-star host connected and its ip.

also you can use your pc to ping pi-star ,

if success,you can open http://pi-star or your pi-stars ip  default login user is pi-star,

pass is raspberry,then login to SET your CALLSIN,ID,FREQ,and Modem,

Display Type is :OLED then Apply Changes.

Also your DMR radio must input the Talk Group and Freq ,then you can talk now.

More info

   http://www.pistar.uk
   http://www.pistar.uk/dmr_bm_talkgroups.php

Connect jumbo spots to brandmeister network

if you have a problem you can install the pi-star IMAGE file to TF card again :

    http://www.pistar.uk/downloads/
    http://www.pistar.uk/downloads/Pi-Star_RPi_V3.4.8_08-Dec-2017.zip

Specifications:

1. High-performance 32-bit ARM processor
2. Fully tested
3. Supports DMR, P-25, D-Star and System Fusion
4. Onboard LEDs to show status (Tx, Rx, PTT, Mode)
5. Up to 10mW RF power
6. Size and Weight：7x3x2.3Cm/50G

Package Included:

• 1 x Fully assembled and tested Jumbo-Spot-RTQ
• 1 x SMA UHF and On board Wifi antennas
• 1 x Quick setup Manual can be downloaded here
• Colour may vary from picture

Notes:

1. Transition: 1cm=10mm=0.39inch
2. Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid.
3. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
4. Product type: HDMI
