ADSB Base station antenna 1090Mhz
Price: R1,265.00
Ex Tax: R1,265.00
Ex Tax: R1,265.00
Qty:
- OR -
Add to Wish List
Add to Compare
Add to Compare

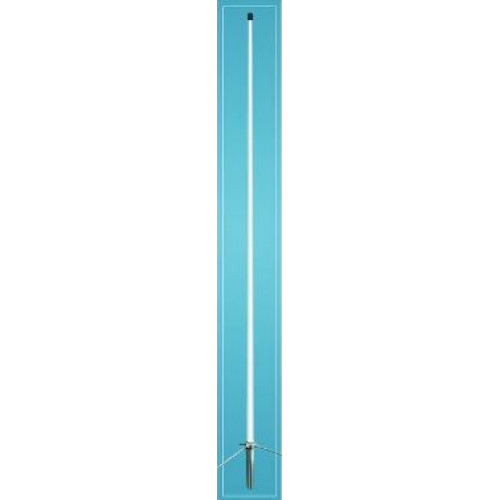

ADSB 12dbi Base station antenna for 1090Mhz
Due to the high frequency used (1090 MHz) the coverage from each receiver is limited to about 250-450 km (150-250 miles) in all directions depending on location. The farther away from the receiver an aircraft is flying, the higher it must fly to be covered by the receiver.
Specification:
- Frequency: ADSB or 1090MHz
- Impedance(ohm): 50
- Gain:12dbi
- Polarization: Vertical
- Material: Fiberglass,copper
- Lenth: about: 170Cm
- Maximum input power (W): 200W
- VSWR: ≤1.5
- Color: White
- Connector: N-Female
Mounting Details
SWR Curve
Antenna analysis
Flight coverage of plain transponders
World Coverage
