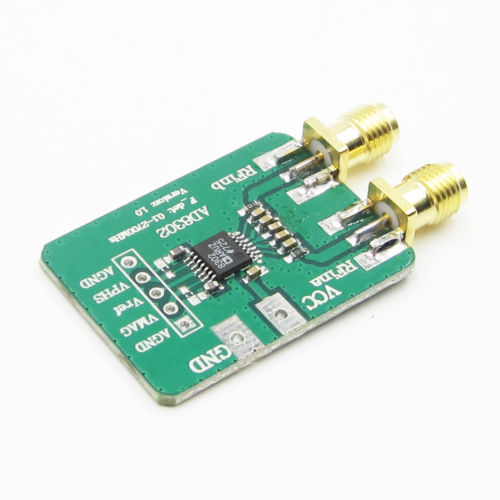

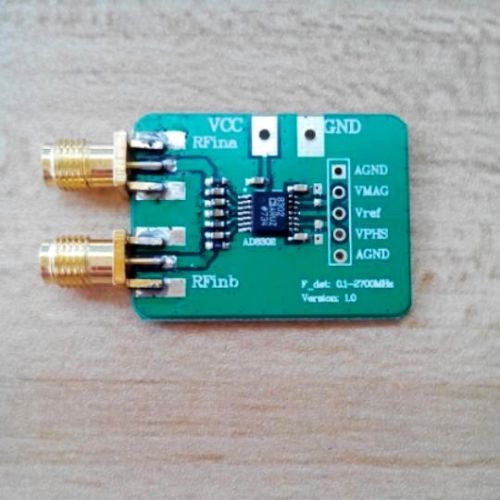

AD8302 Amplitude Phase RF Detector Module IF 0 to 2.7GHz Phase Detection

AD8302 Amplitude Phase RF Detector Module IF 0 to 2.7GHz Phase Detection.

Features

• Measures Gain/Loss and Phase up to 2.7 GHz

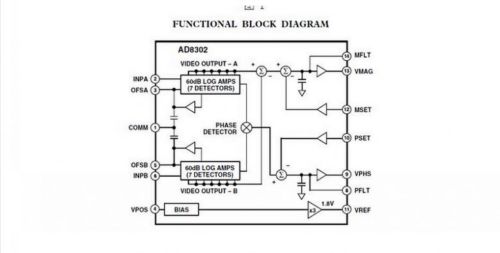

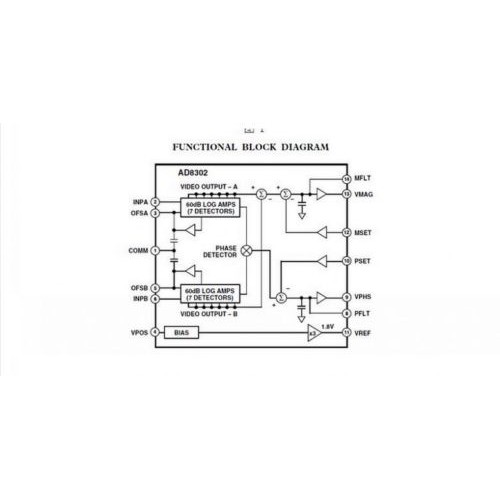

• Dual Demodulating Log Amps and Phase Detector
• Input Range –60 dBm to 0 dBm in a 50 Ohm System
• Accurate Gain Measurement Scaling (30 mV/dB) Typical Nonlinearity < 0.5 dB
• Accurate Phase Measurement Scaling (10 mV/Degree) Typical Nonlinearity < 1 Degree
• Measurement/Controller/Level Comparator Modes
• Operates from Supply Voltages of 2.7 V–5.5 V
• Stable 1.8 V Reference Voltage Output
• Small Signal Envelope Bandwidth from DC to 30 MHz

APPLICATIONS

• RF/IF PA Linearization
• Precise RF Power Control
• Remote System Monitoring and Diagnostics
• Return Loss/VSWR Measurements
• Log Ratio Function for AC Signals

Link to Dokument  http://www.analog.com/media/en/technical-documentation/data-sheets/AD8302.pdf
