New Es´Hail Sat ( OSCAR-100) Uplink Converter DXPATROL MK4 with enclosure

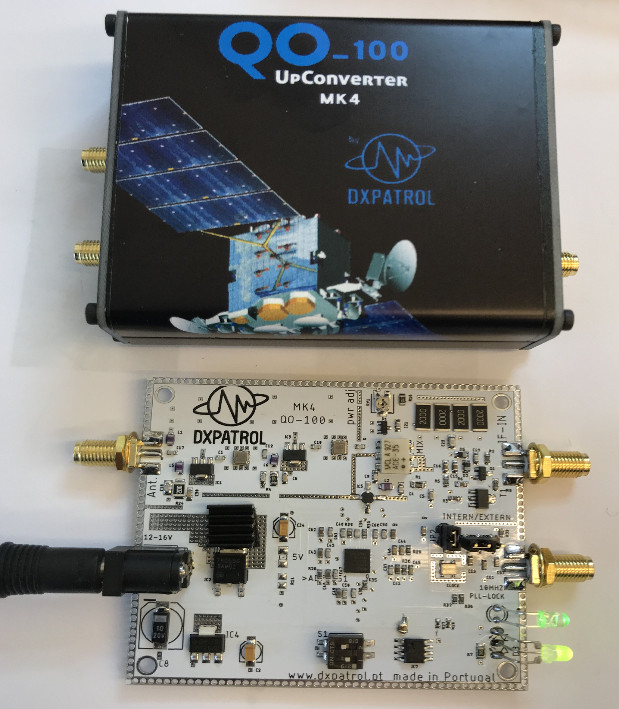

Es´Hail Sat ( OSCAR-100) Uplink Converter DXPATROL MK4 with Enclosure
Click here to Download the Manual MK4

• Full lockable into a internal TCXO 10 Mhz reference or a external GPSDO

• TX /Standby function with RF VOX*

• Extreme accuracy and precision transmission frequency.

• Local Oscillator has 4 factory pre-programmed frequencies for 4 IF usages. (see table)

• Easy selection by dip switch ( s1) on board.

• Clean and stable signal.

• Spurious emissions = < 50dB

• 200mW output 23dBm

• Local Oscillators uses a Analog Devices AF4351 synthesizer

• locked into 10MHz TCXO Clipped Sine Wave Oscillator Frequencies Stability 500ppb

• power supply 10 to 15V

• Current consumption 300mA

• Dimensions: 77mm/67mm

• Connectors SMA

• PLL Lock Green LED indication

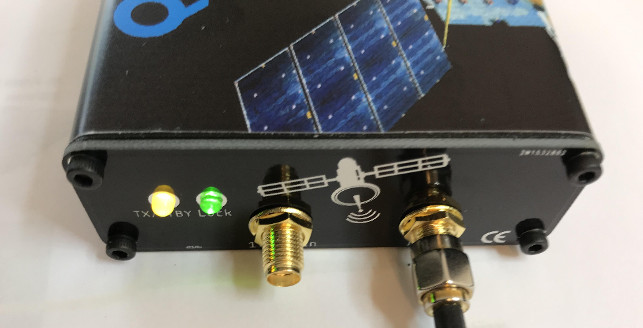

• TX/Standby Green/Orange LED indication *

• RF input 1 to 3 W ( 6W absolute maximum)

• New DC plug connection*

• Metal case optional

Connection diagram
