MLA-30+ Loop Antenna Active Receiving Antenna 100kHz - 30MHz for Short Wave Radio

Features:

1.The MLA-30+ is a toroidal magnetic antenna.
2. The MLA-30+ loop antenna is a popular broadband antenna. It is an effective antenna for short-wave listeners (SWL) and amateur radio enthusiasts (HAM) to receive medium-wave and short-wave in the limited living area of the city. Frequency coverage: 500kHz to 30 MHz.
Excellent directionality can help you reduce noise and improve signal-to-noise ratio, and can dig out weak signals that are overwhelmed by noise when conventional antennas are received.

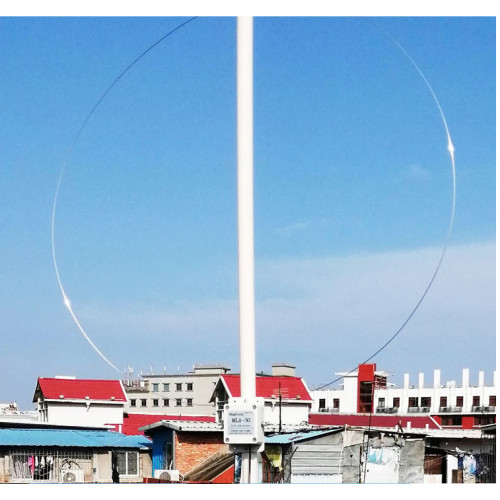

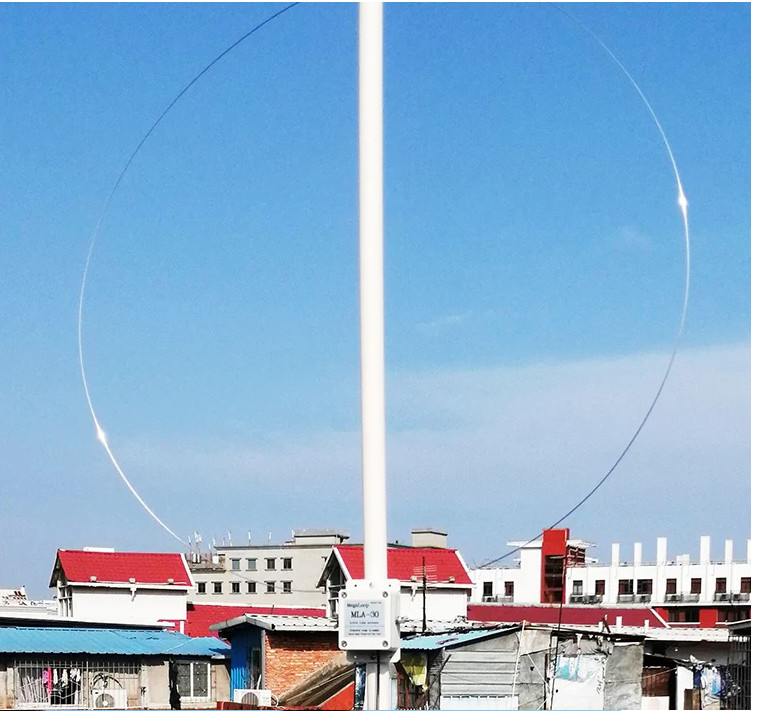

3. The MLA-30+ loop antenna is easy to install and can be easily installed on balconies, rooftops, and other small, compact, low-profile installations without worrying about neighbors and property opposition.
4. Another advantage of the MLA-30+ loop antenna is that it is directional. By rotating the antenna so that the dummy point of the antenna is aligned with the interfering signal, the specific near-field interference can be minimized.

5.Details of the MLA-30+ loop antenna:

①. Do not connect it to the transmitter as it will cause the preamplifier to be damaged.
②. Local radiation noise suppression up to 30 dB compared to long-haul antennas
③. 8-shaped patterning provides deep dummy points to further reduce interference
④. USB power supply, convenient to take power. Self-contained feeders simplify the nstallation process.
⑤. Simple structure, easy to install to the balcony, rooftop and other locations.
⑥.No manual adjustment required
⑦. Install low-key, no need to worry about neighbors and properties.
⑧. Modular design, easy to install and maintain.
⑨. Stainless steel ring vibrator, easy to install and easy to maintain.
⑩. Rainproof enclosure for long-term fixed outdoor use.
⑪. Main coverage: 500kHz to 30 MHz

Note: The reception performance of the upgraded version is much better than that of the old version. For the accuracy of the antenna parameters, we start marking from 500kHz, which means 500kHz to 30 MHz. We can guarantee that it will have a good reception effect within this range. 0.1-500khz can also be received, and the reception effect of 0.1-500khz depends on your location.
Therefore, the 0.1-500khz frequency band can be received. It does not mean that we have cancelled the reception capability of this frequency band.

Package Included:

1. Stainless steel wire: 1;

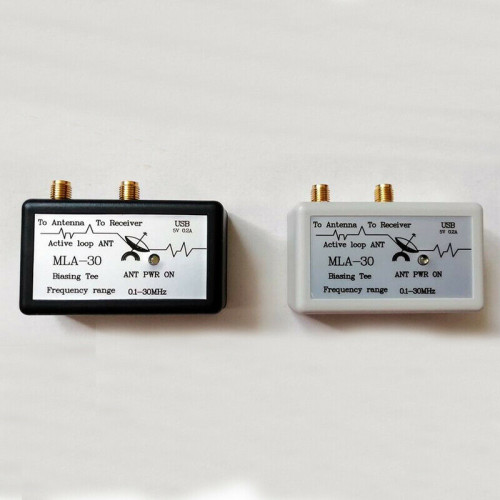

2. Bias power supply: 1,
3. Android USB cable 1 meter: 1
4. SMA to SMA male cable 0.6 meters: 1 meter
5. Antenna box + 10m SMA head line: 1
6. Fixing screws: 2
