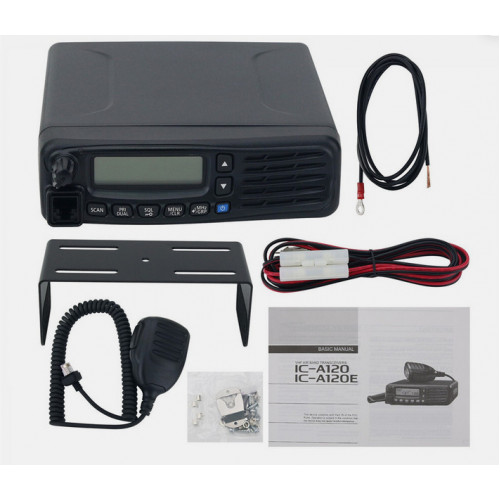

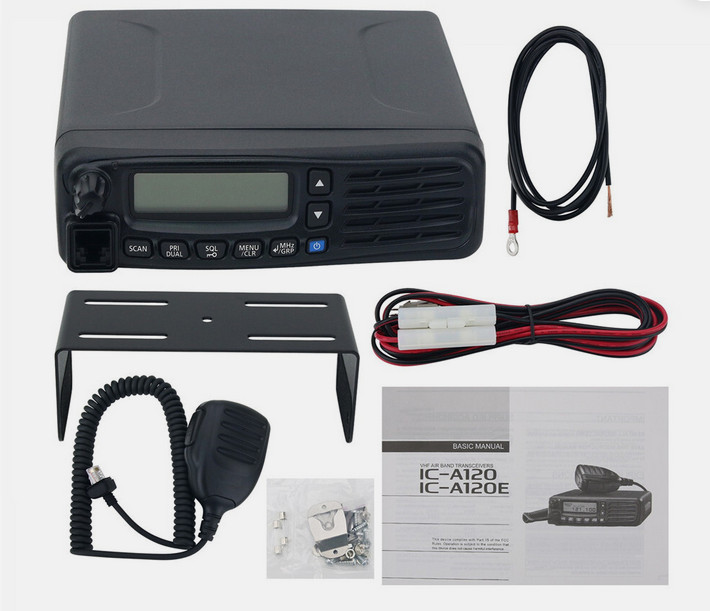

Airband Radio Icom IC-A120

Airband Radio Icom IC-A120

Icom’s A120 air band mobile introduces two new features: Active Noise Cancelling (ANC) and Bluetooth® capabilities. The newly added built-in ANC reduces background noise and is effective in extremely noisy airport environments. The automatic noise limiter (ANL) reduces pulse-type noise such as engine ignition.

SPECIFICATIONS
GENERAL :IC-A120
Frequency coverage: (Tx/Rx) 118.000-136.992MHZ
Channel spacing: 25kHz/8.33kHz
Type of emission: 6K00A3E, 5K60A3E (FCC/EXP) 6K00A3E (Industry Canada)
Operating temperature: -30°C to +60°C; -22°F to +140°F +5ppm (-30°C to +60°C; -22°F to +140 'F) SO-239 (500) 200 channels 13.75V/27.5V DC
Frequency stability Antenna connector: ±5ppm (–30˚C to +60˚C; –22˚F to +140˚F)
Number of memory channels: 200 channels
Power supply requirement: 13.75V/27.5V DC
Current drain (at 13.75V)
---Transmitting: 5.0A (maximum)
---Receiving: 4.0A (at AF max.), 0.5A (at stand-by) 161x45x175 (mm):
Dimensions (WxHxD, :161×45×175 (mm)
---Projections not included): 6.34x1.77x6.89 (in) (approximately) |1.5kg; 3.3lb (main unit)
Weight (approximately) : 1.5kg; 3.3lb (main unit)

TRANSMITTER

Output power (at 13.75V) 9.0W typical
(Carrier Power) : 10.0W maximum
Spurious emissions:Less than -60dBc
Modulation capability: 70% to 100%
Microphone impedance: 6000 OHM

RECEIVER
Intermediate frequencies: 38.85MHz/450kHz (1st/2nd)
Sensitivity (at 6dB S/N): Less than 1μV
Selectivity 8.33kHz : 2.778/7.37kHz (6dB/60dB)
Selectivity  25kHz : 8/25kHz (6dB/60dB) More than 74dBu

Spurious response
Audio output power: (10% distortion, 60% modulation)
Internal SP (80 load): 1.5W typical
External SP (80 load): More than 10W
Headphone (5000 load): More than 100mW


Measurements made in accordance with FCC Part 87 and Industry Canada for USA version. All stated specifications are subject to change without notice or obligation.
