GROIP1 ROIP system for remote control of transceiver (voip)

GROIP1 is a Remote Voice activated VOX system that can be configured via a Web server interface to set audio and VOX trigger levels for ROIP implimentations.

Functionality

WIFI connection to the Internet via Local hotspot web interface and remote configuration from internet is possible.

The sytem can trigger PTT automatically based on the VOX level setting when voice audio is received from Mumble Voice server.

The Build-in squelce capabilities can aslo be configured for reception trigger of voice from radio to Mumble server.
Mic and external Speaker audio levels can be configured with the web interface remotely.
Emphasis and de-emphasis can be configured by changing Jumpers on the Interface Board.

The unit can be powerd by USB-C or 7 to 13 volt power connector.

The unit is extremly low power and is ideal for solar panel installations.

Applications

1) Drone remote AIR band anouncing using Mumble APP or Mobile application to communicate to Airband Radio on remote site.
2) Remote Hamradio basestation interface.
3) Repeater Connect Via Mobile or Desktop application.
4) Is compatible with Mumble server allowing mobile aplication to comunicate to GROIP via Mumble server.

Hardware

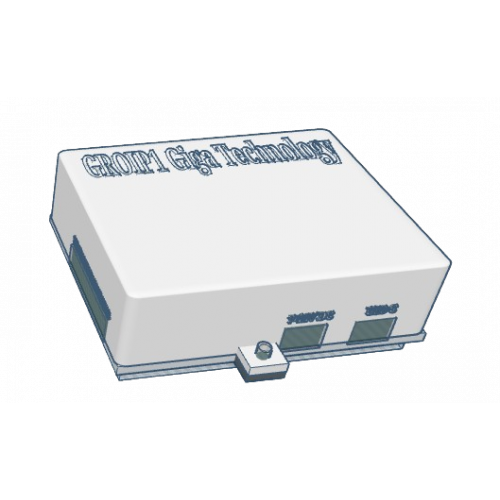

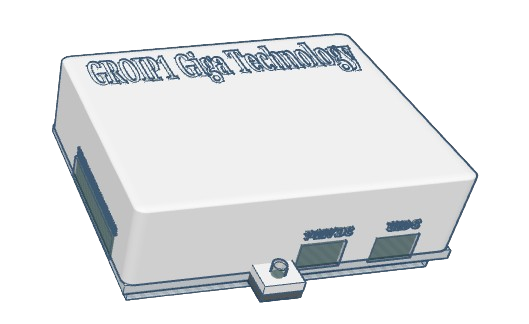

Groip1 unit.

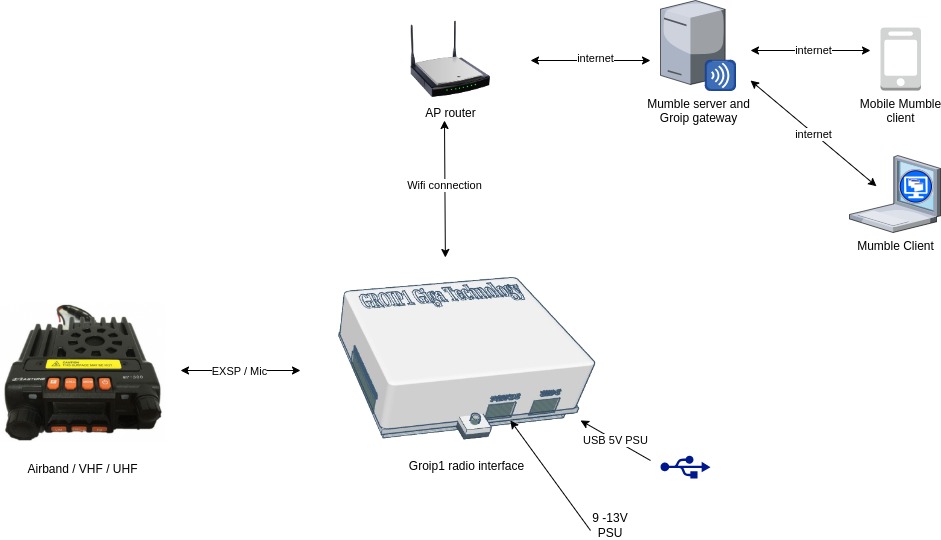

Radio interface wiering diagram

Connection details.
1) Trancever exsternal speacker to Groip
2) Trancever MIC and PTT from GROIP
3) ower supply to GROIP USB or 9-13V DC

1) Connect to Groip WIFI
2) Login into browser to ip Http://192.168.4.1 Groip admin url
3) Enter your Wifi Connection credentials
4) Groip will now connect to your Wifi
5) Then Connect to your Groip IP admin IP address.
6) administrate the Mumble and Groip gateway IP details
7) setup your audio levels in the Groip admin screen to set up audio levels for mic input and external speaker output  configuration.
8) 1 Khz tone can be enabled for TX to set modelation levels by adjusting audio levels.

Groip Admin Screens

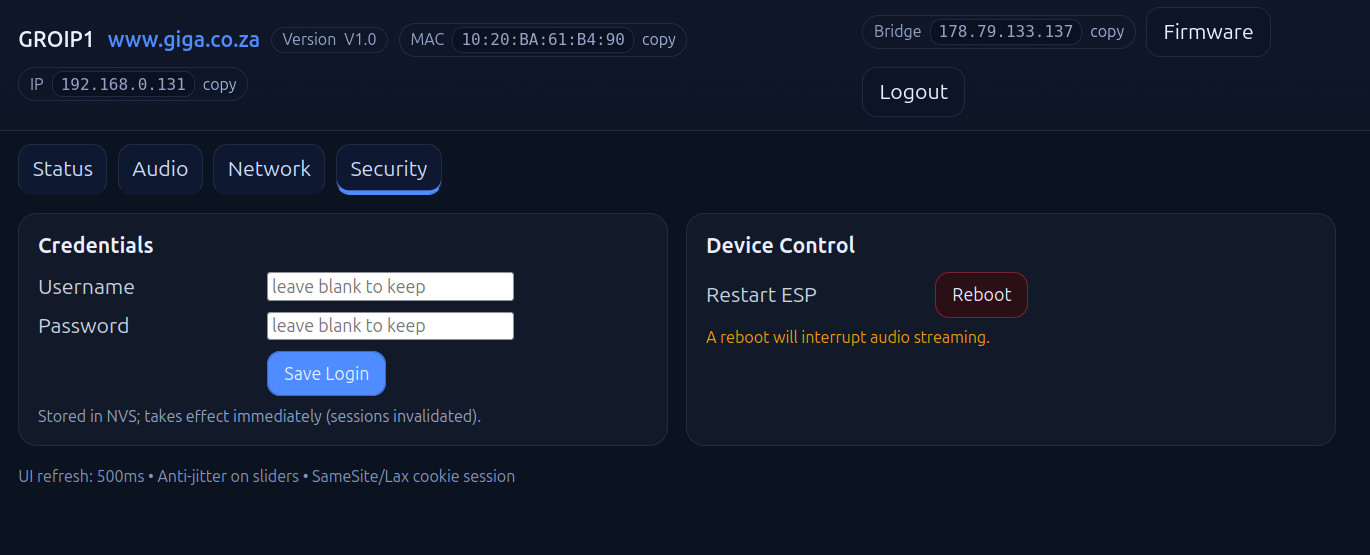

Security

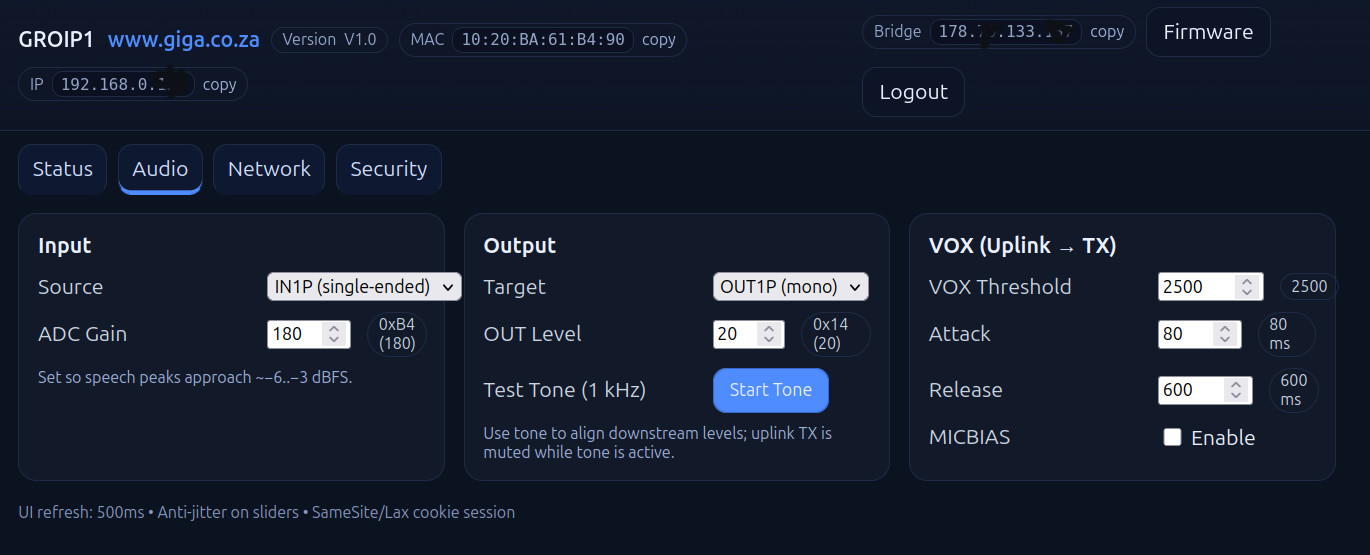

Audio Settings

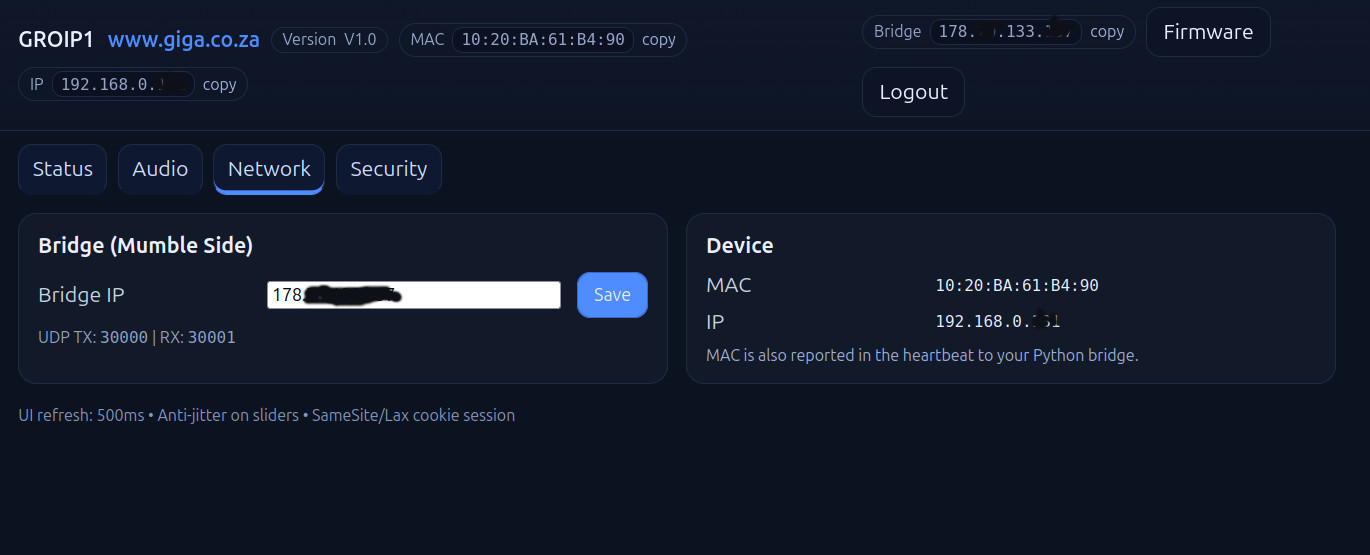

Network settings

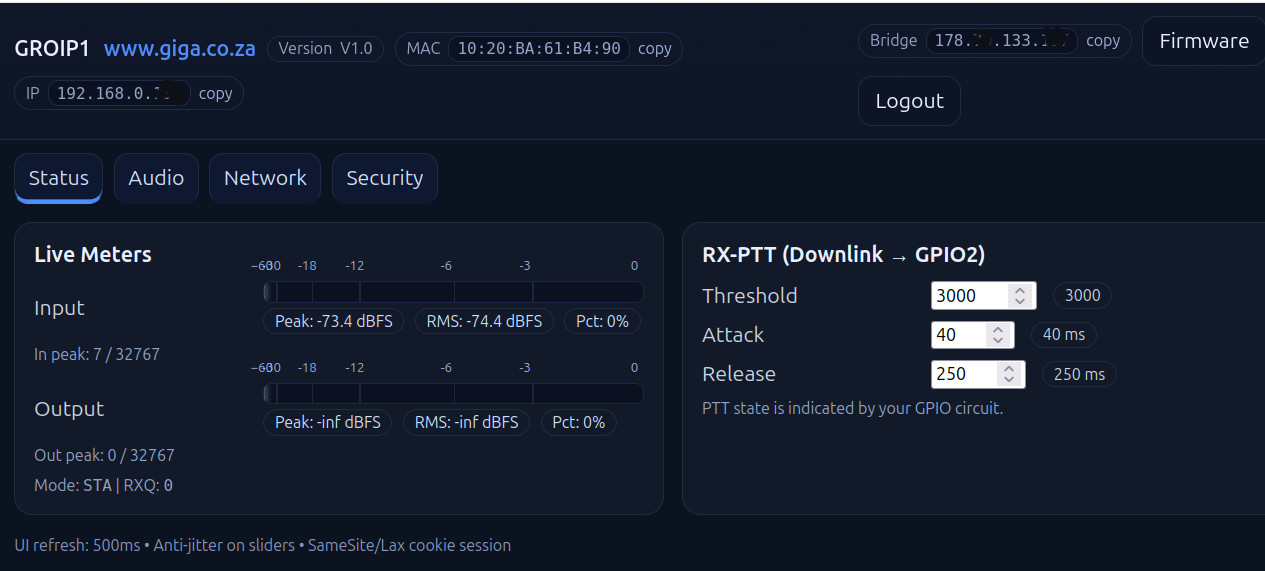

Status

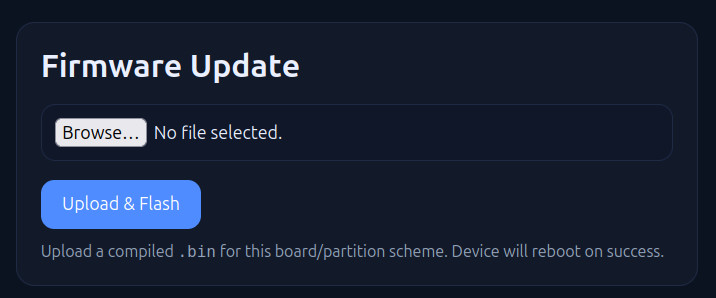

Fermware
