150W DC 8~32V to 9~46V Voltage Boost Converter Regulator - Blue
Price: R62.10
Ex Tax: R54.00
Ex Tax: R54.00
Qty:
- OR -
Add to Wish List
Add to Compare
Add to Compare

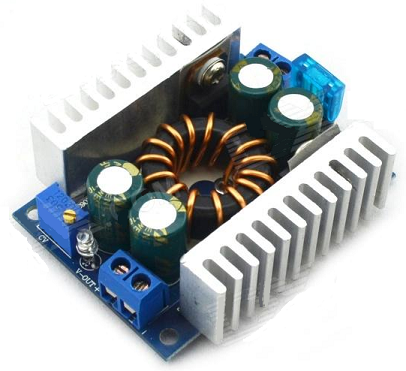

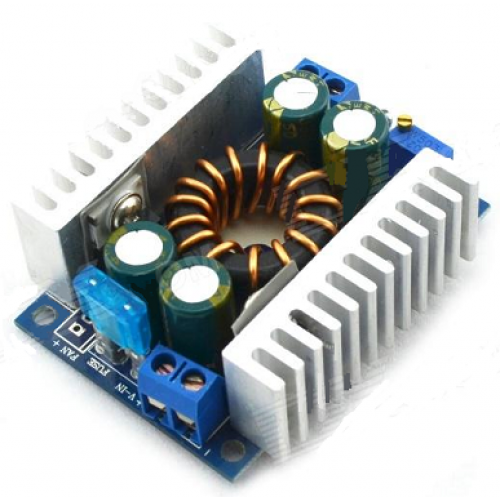

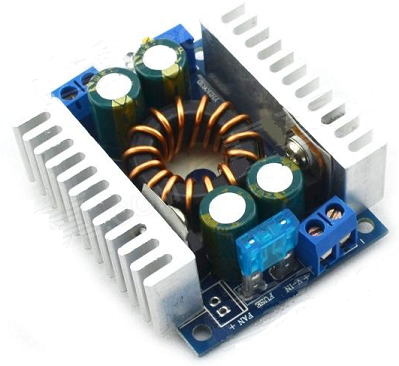

150W DC 8~32V to 9~46V Voltage Boost Converter Regulator - Blue
Spec.
- Color: Blue + silver
- Material: PCB
- Power: 150W
- Module properties: Non-isolated module
- Input Voltage: 8~32V
- Input Current: 16A Max. (please enhance heat dissipation if over 8A)
- Output voltage :9~46V (adjustable, default output 19V)
- Output current: 8A Max. (please enhance heat dissipation if over 4A)
- Static operating current: 15mA (12V to 20V)
- Output power: 90W(natural cooling), 150W(enhance heat dissipation )
- Capacitance: 2x 470uF/35V(input) ; 2x 330uF/50V(output)
- Operating temperature: -40~85'C
- Working frequency: 380KHz
- Conversion efficiency: up to 95%
- Operating LED indicator: Yes
- Short circuit protection: None
- Input reverse polarity protection: None (If need please install diode at input port )
- Installation: 4x 3mm screws
- Wiring: Terminals, Needn't solder, V-IN input, V-OUT output
- Module size: 60mm x 50mm x 20mm
- Testing:
- 16V to 19V, output current 3A, efficiency 94%
- 12V to 20V, output current 5A, efficiency 89.5%
- 12V to 30V, output current 3A, efficiency 89.2%
- 24V to 42V, output current 3A, efficiency 95.2%
- Suitable for Car power DIY project, provide power supply for laptop, PDA or other deigital device
Dimensions: 2.36 in x 1.97 in x 0.79 in (6.0 cm x 5.0 cm x 2.0 cm)
Weight: 2.61 oz (74 g)
Weight: 2.61 oz (74 g)
