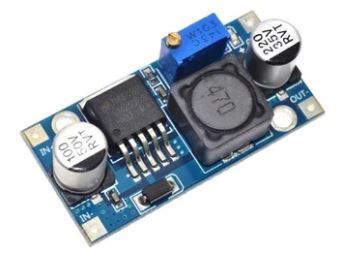

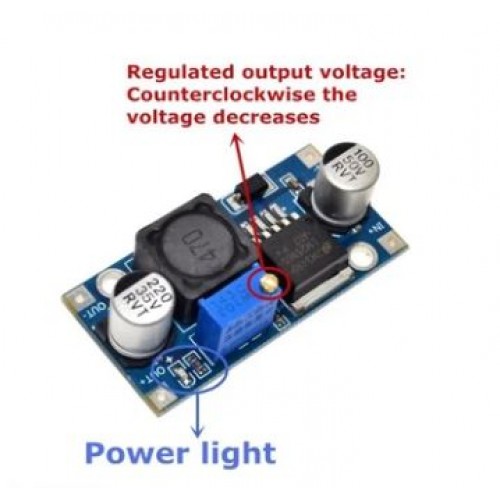

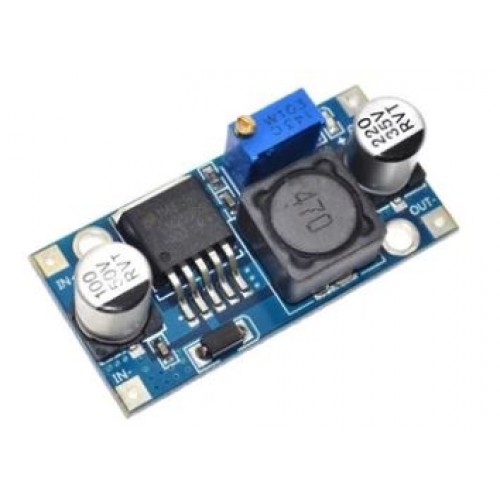

LM2596 LM2596S DC-DC 3-40V ADJUSTABLE STEP-DOWN POWER SUPPLY MODULE VOLTAGE REGULATOR
Product Code: LM2596STEPDOWN
Availability: 8
Availability: 8
Price: R83.95
Ex Tax: R73.00
Ex Tax: R73.00
Qty:
- OR -
Add to Wish List
Add to Compare
Add to Compare
LM2596 LM2596S DC-DC 3-40V ADJUSTABLE STEP-DOWN POWER SUPPLY MODULE VOLTAGE REGULATOR
SPECIFICATIONS:
- Module property:Non-isolation buck
- Rectification mode:Non-synchronous rectifier
- Input voltage range DC : 3 V- 40 V
- Output voltage range DC :1.3 V-35 V
- Output current :Rated current is 2A, maximum 3A(Additional heat sink is required)
- Conversion efficiency:92%( highest )
- Switching frequency: 65 KHz
- Output ripple: 30 mV( maximum )
- Load regulation:±0.5%
- Voltage regulation:± 2.5%
- Work temperature:-Minus 40 degrees - 85 degrees
- dimension: 43 mm x 21 mm x 14 mm(L*W*G)
DATASHEET
