Testing the Lime mini SDR
« on: December 20, 2018, 09:33:08 am »
Here is the details on how to test the Lime mini SDR
lime_mini

This repository will have all my Lime mini configurations.
Installing soapysdr on ubuntu 18.10

sudo apt-get install python3-pip python3-pyqt5 python3-numpy python3-scipy soapysdr python3-soapysdr #packages for soapysdr available at myriadrf PPA
/usr/share/doc/soapysdr-tools
cd /usr/share/doc/soapysdr-tools/ sudo add-apt-repository -y ppa:myriadrf/drivers
sudo apt-get update
sudo apt-get install limesuite liblimesuite-dev limesuite-udev limesuite-images
sudo apt-get install soapysdr-tools soapysdr-module-lms7
sudo apt-get install soapysdr
LimeUtil --info
SoapySDRUtil --info
SoapySDRUtil --find="driver=lime"
Testing the Lime Mini

LimeUtil --info
LimeUtil --find
SoapySDRUtil --info
SoapySDRUtil --find="driver=lime"
#testing

cd /home/anton/lime-tools/build
sudo ./LimeMon
sudo ./LimeScan

/usr/bin/LimeQuickTest
/usr/bin/LimeSuiteGUI
/usr/bin/LimeUtil
#LimeQuickTest

LimeQuickTest --no-gui
LimeQuickTest --gui
#testing lime
https://wiki.myriadrf.org/Testing_the_LimeSDR

LimeSuiteGUI
https://wiki.myriadrf.org/LimeSDR-USB_Quick_Test
Testing the transmitter in Gnuradio.

Link to block source https://github.com/antonjan/lime_mini/blob/master/gnuradio/Lime_transmitter_test_zr6aic.grc

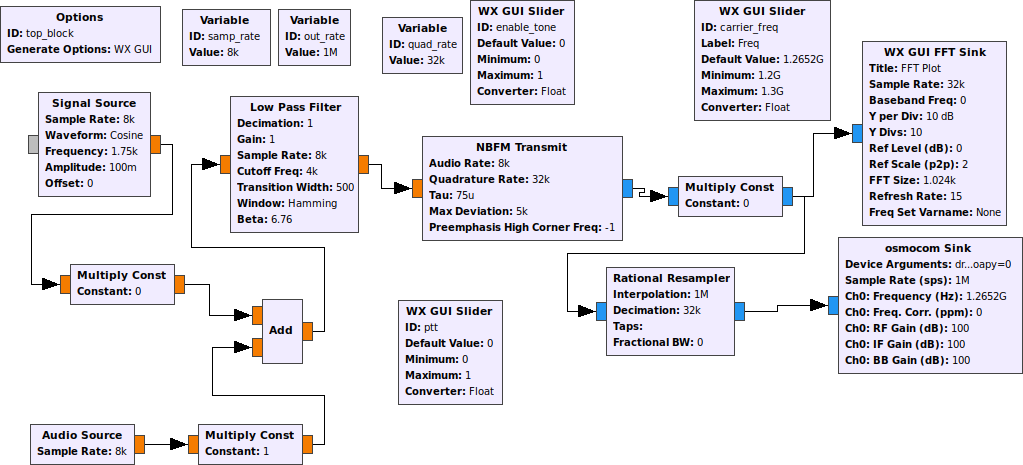

Here is a Gnuradio block that will modulate the Lime mini sdr with Fm from Microphone and 1 Khz zone.
In the gnuradio radio directory is a working Transmitter testing code.

Here is the settings for the Lime mini. (you need to install the soapySDR drivers.

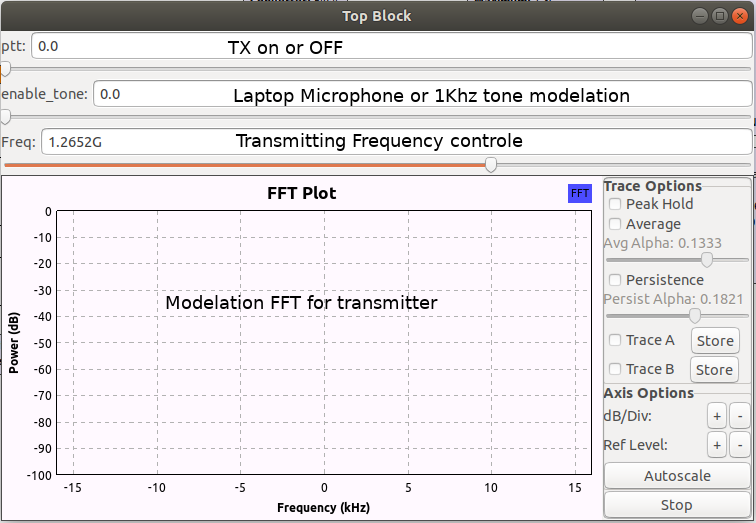

Screenshot of Application
Changing the PTT value to 1 enables modelation.
Changing the enable tone to value 1 will switch the modelation from internal Microphone of laptop to the 1Khz tone generator.
The Modulation can be seen in the FFT Plot box.
