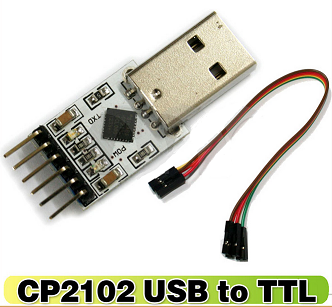

USB 2.0 to UART TTL 6PIN CP2102 Serial Port Converter.

USB 2.0 to UART TTL 6PIN CP2102 Serial Port Converter.
USB 2.0 to UART TTL 6PIN CP2102 Serial Port Converter. USB 2.0 to UART TTL 6PIN CP2102 Serial Port Converter.
Brand: Giga
Product Code: USBTOTTLCP2102
Availability: 21
Price: R58.00
Ex Tax: R58.00
Qty:     - OR -   Add to Wish List
Add to Compare

USB 2.0 to UART TTL 6PIN CP2102 Serial Port Converter.

Here is the link with comparison https://www.youtube.com/watch?v=Vawhrr4COjI

  • This is a USB 2.0 to TTL UART 6PIN CP2102 Module Serial Converter. Connect MCU easily to your computer!
  • Stable and reliable chipset CP2102.
  • USB specification 2.0 compliant with full-speed 12Mbps.
  • Standard USB type A male and TTL 6pin connector. 6 pins for 3.3V, RST, TXD, RXD, GND & 5V.
  • All handshaking and modem interface signals.
  • Baud rates: 300 bps to 1.5 Mbps.
  • Byte receive buffer; 640 byte transmit buffer.
  • Hardware or X-On/X-Off handshaking supported.
  • Event character support Line break transmission.
  • USB suspend states supported via SUSPEND pins.
  • Product Name :CP2102 USB to TTL Module
  • Control chip: CP2102
  • Operating voltage:4V-5.25V
  • System support:Windows 98SE/2000/XP/Vista/Window7/Mac OS 9/Mac OS X/Linux 2.40
  • Output voltage:Dual voltage output (3.3V and 5V)
  • Output indicates:Power indicator, TXD instructions
  • Output current:100mA (Band current limiting protection)
  • Output interface: 3.3V, RST, TXD, RXD, GND, 5V.
  • PCB Dimensions: 26.5mm * 15.6mm

  • Weight: 4g

  • Using a new chip factory in 2013 CP2102

  • With self-recovery fuse. In the event of accidental short circuit, it can effectively protect your computer USB port and Downloader.

  • With three LEDs: power indicator, data reception indicator, the data transmission indicator, working status.

  • With 3.3V and 5V dual power output.

  • Pin leads to all sorts of useful

  • With reset signal output, etc. directly to the FOR Arduino board Promini download!


    CP2102 its high integration, built-in USB2.0 full-speed function controller, USB transceiver, crystal oscillator, EEPROM, and asynchronous serial data bus (UART), supports full-featured modem signals, without any external USB device. CP2102 with other USB-UART adapter circuit works similar to the PC through the driver's USB port into a virtual COM port in order to achieve the purpose of expansion.

    Feature:

    1.included USB transceiver, without external circuit device
    2.includes a clock circuit, no external circuitry is
    3.includes power-on reset circuit
    4.chip 3.3V voltage regulator output voltage can be
    5. Meet the USB2.0 specification requirements
    6.SUSPEND pin supports USB suspend state
    7.asynchronous serial data bus compatible with all handshake and modulation controller interface signals
    8.Supported data format is 8 data bits, 1 stop bit and parity bits
    9.connotation 512 byte receive buffer and 512 byte transmit buffer
    10.Supports hardware handshaking or X-ON/X-OFF

    Shipping Included:

        1PCS*6Pin CP2102 Module
