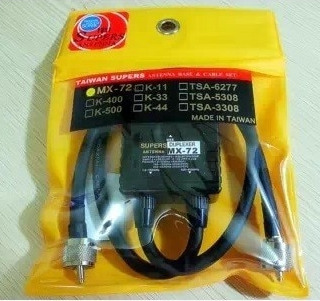

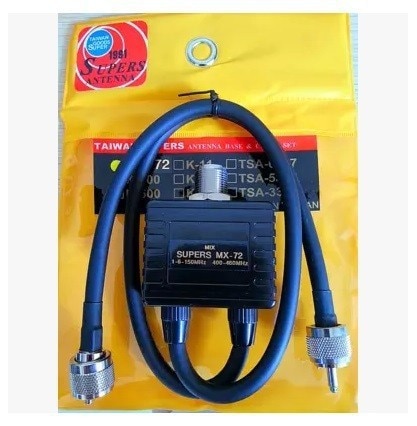

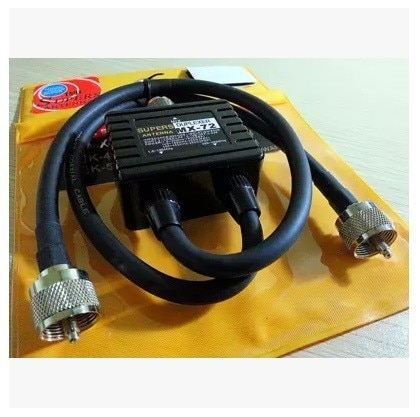

HF VHF UHF Linear combiner MX72 transfer station Duplexer

HF VHF UHF Linear combiner MX72 transfer station duplexer.

MX-72 is suitable for:

• 1 two machines connected to an antenna
• 2 with two double V/U machines connected, can be a transit station.
• Name: MX-72 combiner (different frequency duplexer)

The frequency of use:

• LPF:1.6-30MHz, 49-150MHz/HPF:400-460MHz
• The corresponding frequency: LPF:1.6-225MHz/HPF:340-100MHz

Tolerance:

• 1.6-30MHz:400W (CW) /1KW (PEP)
• 49-150MHz:150W (CW) /400 (PEP)
• 400-460MHz:100W (CW) /250W (PEP)

Accept the loss:

• The following LPE:0.1db, HPF:0.2db, Isolation:60db
• Ambassador Bobbi: less than 1.2
• Impedance: 50 ohms
• The coaxial feed line: 5D-FB (32cm)
• Size: 46W*27H*57D mm
• Weight: 180g
• Interface: MJ-MP MP
