"Easy Digi" digital mode interface for sound card (KIT) (APRS,RTTY,PSK,WSPR,QRSS,CW,AFSK,Echolink)

A convenient, single board, isolated, digital interface that works for almost all of the digital modes on HF and VHF/UHF. Works with DIGIPAN, FLDIGI, MTTY, MMSSTV and most all other sound card programs! Work PSK-31, PSK-63, RTTY, SSTV, NBEMS, plus many other modes on your HF or VHF/UHF rig.

Nothing new about this technology, it consists of two 600 ohm line transformers for audio input and output from your pc to your transceiver, and an opto-coupled push to talk circuit that works off an RS-232 port on your computer. (USB to RS232 modulus is also available)

Features

  • Transformer coupled audio eliminates ground loops and AC hum on your signal.
  • Opto Coupled push to talk circuit also eliminates ground loops and false triggering of your PTT lines.
  • Very small size, only 2 1/16” x 1 3/8” x .625” high, can be incorporated inside of many radios, with only your RS-232 cable coming outside of the radio.
  • Weighs less than 3 ounces.
  • High quality FR-4 double sided, solder masked, silk screened, Printed Circuit Board.
  • Compatible with most modern ham radio transceivers.
  • If you wish to not use the serial port for PTT, you can just use the audio channels and key your radio via VOX operation.
  • Compatible with most USB to Serial port adapters for use on laptops and other computers that do not have serial ports.
  • 100% American made, nothing imported, high quality FR-4 double sided, plated through, solder masked, printed circuit board.

These interfaces have been tested on Kenwood TS-120, TS-530, TS-570, TS-930SAT, TS-820, TR-7400A, TR-7850, TS-50, TM-261A, TM-G707A, ICOM IC-2100H, IC-746PRO, IC-706MKIIG, YAESU FT-817, FT-857, FT-2800, Elcraft K2, Alnico DX-77, and many other radios.

Simply hook up per the enclosed wiring diagram and load your software, configure your com port, turn on the radio and have fun on your favorite digital mode!

Simply assemble and hook up per the enclosed wiring diagram and load your software, configure your com port, turn on the radio and have fun on your favorite digital mode!

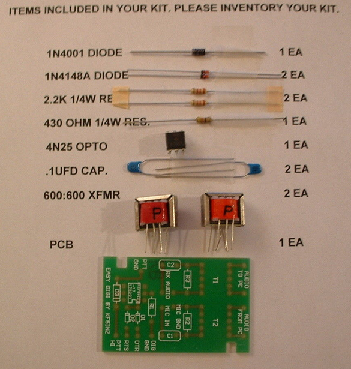

ITEMS INCLUDED IN YOUR KIT. PLEASE INVENTORY YOUR KIT.

  1. 1N4001 DIODE                                              1 ea
  2. 1N4148A DIODE                                            2 ea
  3. 2.2K 1/4W RESISTOR                                    2 ea
  4. 430 OHM 1/4W RESISTOR                             1 ea
  5. 4N25 OPTO COUPLER                                   1 ea
  6.  .1UFD CAPACITOR                                       2 ea
  7. 600:600 AUDIO TRANSFORMERS                  2 ea
  8. PCB                                                              1 ea
  9. Solder                                                            12”

It is assumed that you have a 25 – 45 watt soldering iron. Pencil type tips are preferred. Use of a soldering GUN is NOT recommended due to the small sizes of the solder pads and small spacing between pads. You will also need a pair of wire cutters and a pair of needle nose pliers. The 12” of solder supplied should be enough to solder several of these boards – use the solder sparingly – to end up with a professional looking and operating board with no solder shorts. This board should take approximately 15 minutes to assemble and solder.

  1. Using the printed circuit board layout, find the locations for the two 1N4148A Diodes and install them. Observe the polarity. The band on the diode must be oriented to the band on the circuit board layout. Bend the leads so that the diodes lay flat on the circuit board. Solder and clip the leads off close to the board.
  2. Find the locations for the two 2.2k 1/4W Resistors and install them. Bend the leads so that the resistors lay flat on the circuit board. Solder and clip the leads off close to the board.
  3. Find the location for the 430 ohm 1/4W Resistor and install it. Bend the leads so that the resistor lays flat on the circuit board. Solder and clip the leads off close to the board.
  4. Find the location  for the 1N4001 Diode and install it. Observe the polarity. The band on the diode must be oriented to the band on the circuit board layout. Bend the leads so that the diode lays flat on the circuit board. Solder and clip the leads off close to the board.
  5. Find the location for the 4N25 optocoupler IC, and install it. Pin1 of the opto-coupler is indicated by a small circular indentation in the top left corner of the IC. Orient pin 1 of the opto-coupler to the  pin1 location on the circuit board. The leads of the opto-coupler will need to be bent inward a slight amount to fit into the circuit board. After installing the 4N25 optocoupler IC, solder the 6 leads.
  6. Find the location for the two .1ufd capacitors and install them. The capacitors are NOT polarized, so they can be installed either direction. Push the capacitors down close to the board but do not force them completely down or you will break the body of the capacitor. Solder and clip the leads off close to the board.
  7. Find the locations for the two 600 ohm to 600 ohm transformers. Install the transformers in the three centermost holes on both sides of the transformer. Push the transformers down flat against the board and solder the 6 leads of each transformer.
  8. If you use the supplied solder, you do NOT have to clean the circuit board after soldering.
  9. REVIEW:

a.        Recheck steps 1 thru 7 above to insure that you have installed the correct parts in the correct locations on the circuit board.

b.        Inspect each and every solder joint to insure there are no solder shorts and that every lead is soldered.

c.        Insure that all leads have been clipped and that there are no pieces of wires or other debris causing shorts on the circuit board.

  10. ​​Wrap-up:

a.   Your board is now complete and ready to be connected to your radio and computer per the enclosed installation drawing.

b.  ENJOY the digital modes!

These interfaces have been tested on the following radios:

  • Kenwood:  TM-271,  TM-621, TM721A, TR-7400, TR-7850, TR-7950, TS-120, TS-130, TS-440, TS-450,  TS-480SAT, TS-530, TS-820S, TS-870, TS-930, TS-50
  • ICOM:  IC-208H, IC-706, IC706MKIIG,  IC-746 PRO, IC-781, IC-2100H, IC-2200H, IC-2820H
  • YAESU: FT-817, ft-747, FT-857, FT-2800M, FT-2000
  • ALNICO DX-77
  • COBRA 145GTL-DX (10 METER RADIO)
  • ELCRAFT K2
  • QUANSHENG TG-UV2
  • Baofeng UV-5R etc.
  • and others. If your radio is not listed here, you probably can use this interface with it. Please send us an email and tell us what radio you want to use.

Simply hook up per the enclosed wiring diagram and load your software, configure your com port, turn on the radio and have fun on your favorite digital mode!
Since we do not have any control over how you wire this unit to your radio, returns are accepted, however, please email us with any problems you may encounter.
If you return it and we find that it has been abused or modified in such a way as to render it unusable we will NOT refund your purchase price.
We are not responsible for wiring errors or damage to your equipment should you wire it up wrong.
We will be glad to help you work through installation.

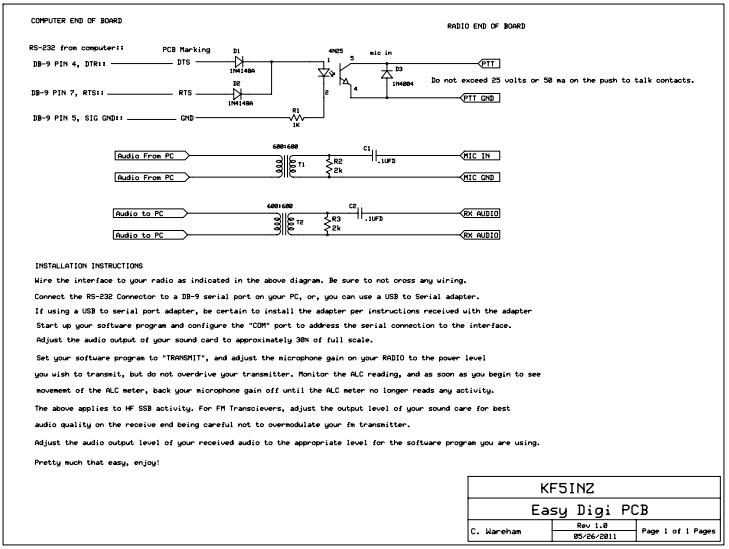

Unit comes with schematic wiring diagram and instructions.

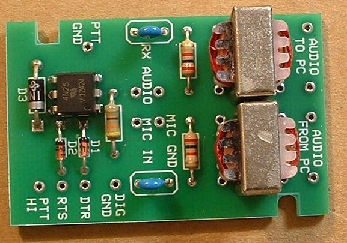

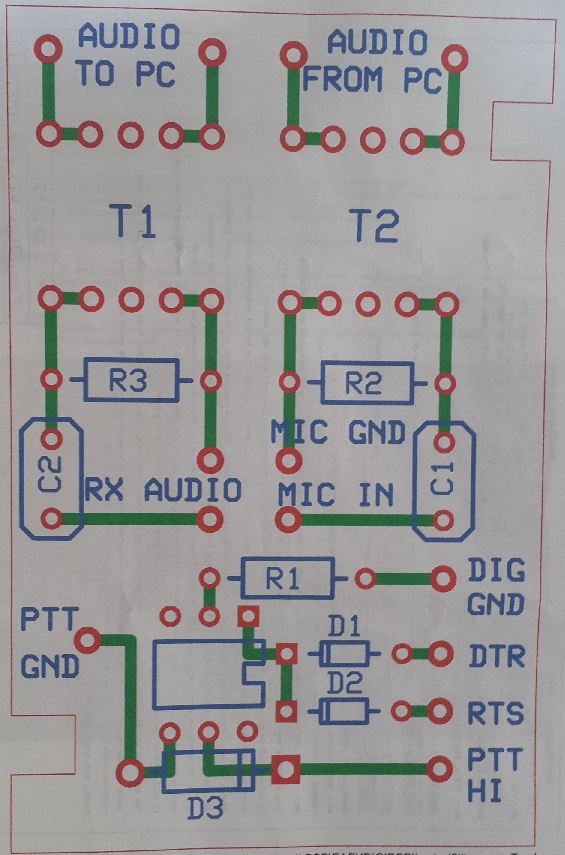

PCB Layout
